Bio-High Voltage Electron Microscope

Bio-High Voltage Electron Microscope Leading-edge Equipment Home

Equipment Introduction

Bio-HVEM has been in operation as a national co-utilization equipment in basic and applied sciences for 3-dimensional large area-high resolution structural analysis of cell organelles, proteins, and bio-nano specimens as well as development of drug and nano materials.

Characteristics of the Equipment

  • 3D modeling of cell organelles by high tilting (±70°) and high resolution (0.15 nm)
  • Enhanced contrast imaging using high accelerating voltage / in-column energy filter
  • Analysis of Enhanced large-area with high resolution by Limitless panorama function
  • Cryo-EM analysis by rapid and continuous freezing of biological specimen

Representative Research Case

3D Reconstruction and modeling of helical assembly of peptide programmable nanoparticles by Bio-HVEM analytical system

3D reconstruction of Peptide programmable nanoparticle superstructure through Bio-high voltage electron microscope (Bio-HVEM) system and 3D Electron tomography with high-resolution and high-tilting angle.

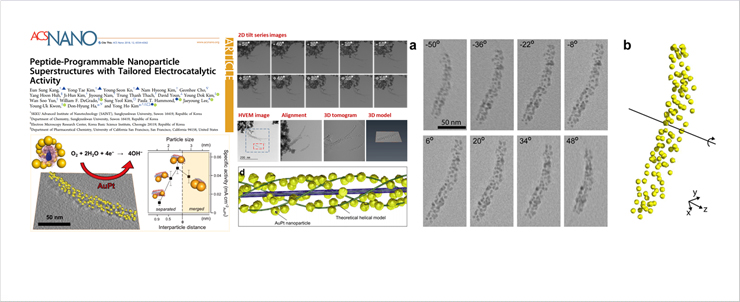

The tilt series of AuPt/HC/SWNT superstructure images were recorded with an interval of 2° by electron tomography of Bio-HVEM. 3D tomogram and model were sequentially reconstructed from aligned tilt series images

Application

  • 3D ultrastructural analysis of thick(>1 μm) bio-nano materials using electron tomography
  • 3D large area analysis of bio-nano materials using limitless panorama
